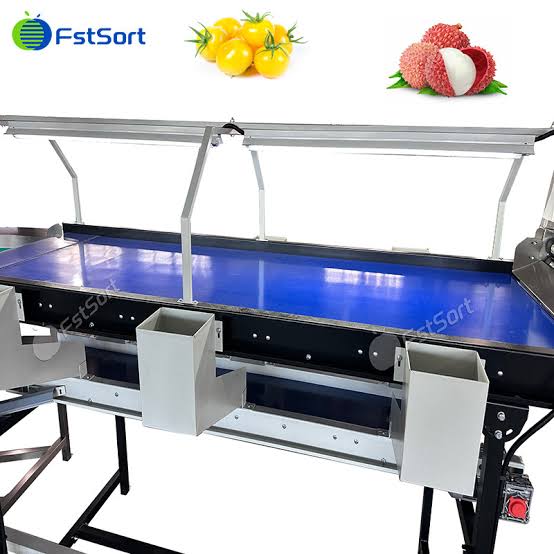

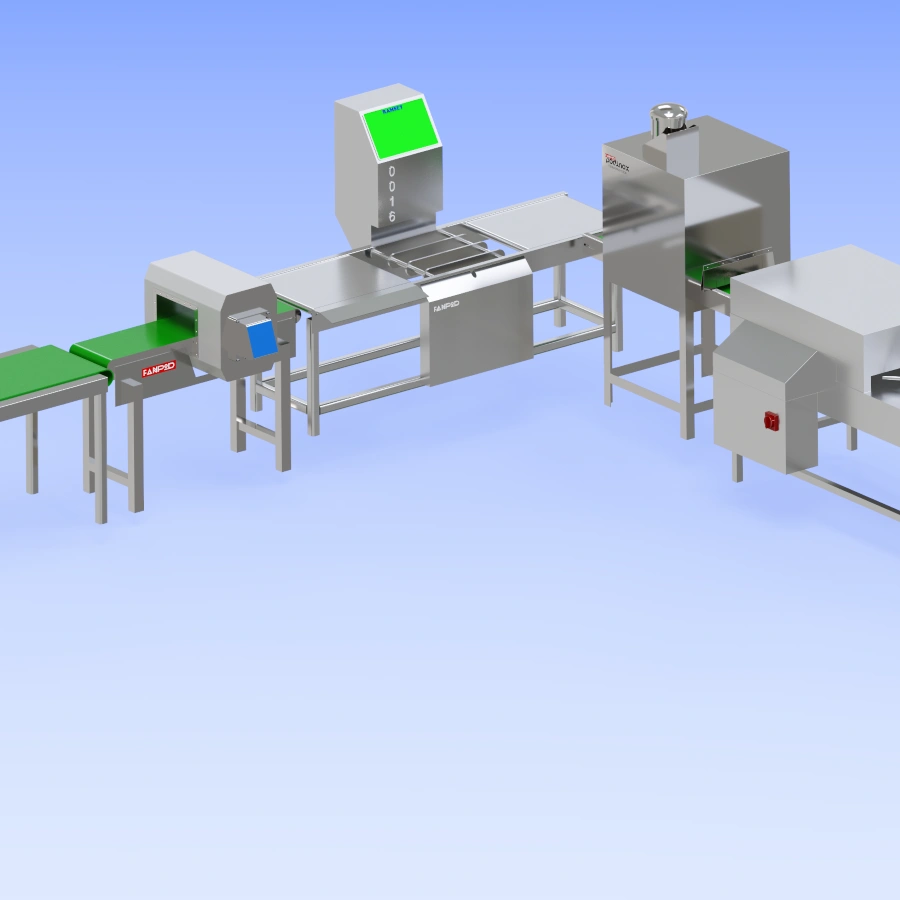

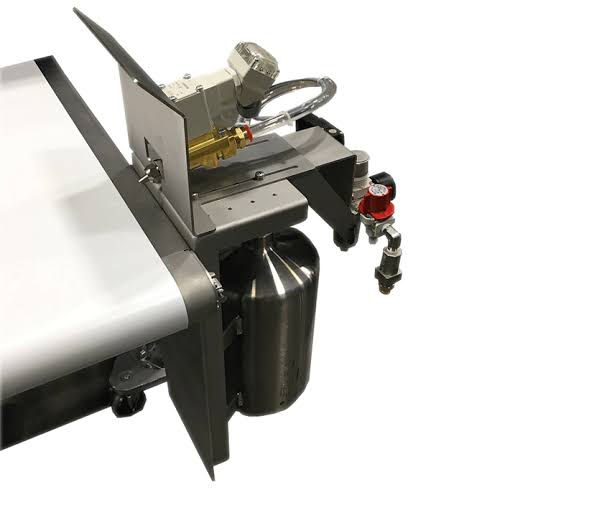

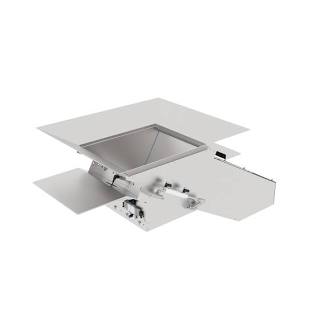

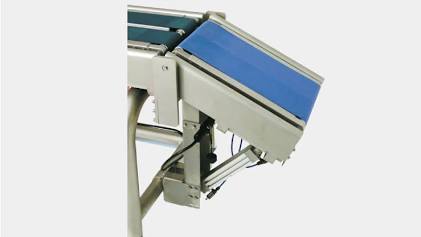

Quality Control & Industrial Inspection Systems Inspection Conveyor Inspection conveyor systems provide precise product presentation, absolute mechanical stability, and controlled product flow separation for manual visual inspections and automated quality control. These specialized conveyors are engineered as the critical interface between raw material processing lines and advanced defect detection equipment, such as high-resolution machine vision systems, industrial X-ray scanners, electromagnetic metal detectors, and high-precision in-line checkweighers. By eliminating micro-vibrations, adjusting the gap between products, and executing safe rejection processes for defective items, inspection conveyors enable strict control over the trajectory of every individual package or bulk material mass. In doing so, this system bridges the gap between high-capacity production and the rigorous requirements of a "zero-defect" quality control approach prior to final packaging and multi-packing stages. 1. Technical Classifications and System Architecture The architecture of an inspection conveyor is directly determined by the sensing technology used for defect identification. This technology may be based on the human eye, a camera lens, an X-ray beam, an electromagnetic field, or strain-gauge load cells. Manual Visual Inspection Tables and Stations These conveyors are designed to improve the ergonomic performance of operators during manual picking, quality control, and product sorting processes, acting as a highly stable platform for presenting the product to the operator. Ergonomic Design Integrated footrests and lateral arm supports are constructed to reduce operator muscle fatigue during extended shifts. Overhead gantries mounted to the machine serve as structural supports for bright, glare-free LED lighting arrays. These lighting arrays can deliver up to approximately 1000 lux, providing uniform, shadow-free illumination across the entire product transit surface. Such conditions make it significantly easier for operators to detect cracks, discoloration, contamination, visual defects, packaging tears, or non-conforming products. Dual Reject and Separation Chutes Lateral discharge chutes are integrated directly into the structural channels of the conveyor. These chutes allow the operator to remove a defective product from the primary flow without losing visual focus and without stopping the upstream line. Depending on the line layout, these chutes can be connected to a waste bin, a suspect-product receptacle, a return loop, or a quarantine station. Low and Stable Speed Control The conveyor drive is controlled by high-reduction gearmotors and precise variable frequency drives (VFDs). This combination allows line speeds to be adjusted within low, stable ranges—for example, around 2 to 10 meters per minute. A slow and consistent speed prevents eye strain, mental fatigue, and motion discomfort for quality control personnel, ensuring sufficient time to accurately inspect every single product. Core Features Height adjustment for improved ergonomics Uniform illumination up to ~1000 lux Side chutes for rejection without line stoppage Stable speed control in low velocity ranges Ideal for extended quality control shifts High-Resolution Machine Vision Conveyors These systems are specifically engineered for automated camera-based inspection. In this application, even the slightest mechanical vibration can cause image blurring, optical distortion, detection errors, or false rejects. Therefore, mechanical stability and precise product trajectory control are of utmost importance. Contrast and Light Reflection Control Machine vision conveyors are typically equipped with ultra-matte, non-reflective belts. By eliminating unwanted glare, these belts enhance the contrast of product edges and drastically improve the performance of machine vision algorithms. This feature is critical for applications such as: Optical Character Recognition (OCR) Label positioning and alignment verification Barcode and QR Code scanning Cap and seal inspection Fill-level verification Packaging deformation detection High-precision dimensional and positional checks Backlit Flow-Through Inspection Tables In this design, a precise cutout is created in the sliding stainless-steel bed directly beneath the belt path. This opening houses an industrial LED backlight panel protected by scratch-resistant tempered glass or polycarbonate. Paired with this panel, a transparent or semi-transparent polyurethane belt is used. Light passes upward through the product, allowing cameras mounted above or at side angles to directly observe profiles, edges, thickness, or fill levels. This setup is applied for detecting: Presence or absence of components Holes or tears in packaging Discrepancies in fill levels Deformation in containers Edge misalignment Visible impurities blocking the light path Product Path Stabilization The conveyor is equipped with under-belt tracking profiles and precisely machined wear strips. These components minimize lateral belt wander and can limit tracking deviation to less than ±0.5 mm. Consequently, containers and packages remain perfectly centered within the camera’s calibrated field of view, ensuring that shifting product positions do not degrade inspection accuracy. Machine Vision Applications OCR and mark detection Label, Barcode, and QR Code verification Cap and tamper-evident seal checks Fill-level inspection Detection of packaging deformation or tears High-precision positional control Integrated X-Ray and Metal Detector Units These conveyors are designed as non-magnetic and electronically isolated transition zones. They transfer products directly through the aperture of a metal detector or scanner without the conveyor structure or components generating electromagnetic noise or causing detection faults. Metal-Free Zone (MFZ) Engineering Within the active range of the metal detector's electromagnetic field, structural components must be fabricated from non-metallic materials wherever possible. Materials utilized in this section can include: Structural fiberglass Engineering ceramics High-density technical polymers Delrin or POM (Polyoxymethylene) UHMW-PE (Ultra-High-Molecular-Weight Polyethylene) Engineering polyamides PEEK (Polyether Ether Ketone) All fasteners and joints within the MFZ must also be non-metallic. Screws, nuts, and threaded rods made of nylon or PEEK are utilized to reduce the probability of false signals and unwarranted rejects. Anti-Static Structure These conveyors utilize belts embedded with carbon-fiber layers or anti-static weaves. This structural feature discharges any electrical charge generated by friction between the belt and the slider bed. Mitigating static buildup prevents electrostatic discharges, thereby avoiding disruptions to highly sensitive electromagnetic or radiometric detection equipment. Seamless and Impact-Free Transfers To safely transfer small, unstable, or thin-walled containers, ultra-small diameter nosebars are employed. The diameter of these nosebars can range from roughly 8 to 15 mm. This design ensures a smooth, jam-free transition for products such as: Thin-walled dairy cups Narrow beverage bottles Lightweight plastic containers Small flexible pouches Low-profile or top-heavy vessels MFZ Components Structural fiberglass Engineering ceramics POM, UHMW-PE, and PEEK Non-metallic screws and fasteners Anti-static belting 8 to 15 mm transition nosebars Continuous Checkweigher Infeed Conveyors These conveyors act as highly stable, independent modules that transfer containers individually over high-precision load cells to verify the net weight of the product. Vibration Isolation Mechanism The conveyor frame is mechanically isolated from the vibrations of the main production line structure. Heavy-duty damped rubber mounts, paired with independent floor anchors, prevent the transmission of building vibrations, neighboring motor resonance, and floor impacts to the weighing platform. This isolation is absolutely essential for achieving stable weighing results and minimizing numerical fluctuations. Synchronized Timing Belt Drive Assembly To transport products accurately across the weighing platform, precision timing belts or polyurethane belts with low-profile V-guides are utilized. These belts are driven by balanced, multi-pole brushless servomotors or precision motorized rollers. This system eliminates belt slippage and maintains a strictly constant product velocity as it passes through the weighing zone. Pitch and Gap Control Between Products Typically, an accelerating infeed conveyor is installed immediately upstream of the weighing platform. These belts slightly accelerate the product to create the proper physical gap between packages. The objective is to ensure that exactly one container rests on the weighing platform at any given microsecond. Multiple products crossing the load cell simultaneously will result in weighing errors and increased false rejections. Checkweigher Requirements Frame isolated from line vibrations Damped rubber mounting feet Timing belt or PU belt with V-guide Precise, slip-free movement Pre-weighing gap generation 2. Product Rejection and Flow Separation Systems The function of an inspection conveyor is not complete merely by detecting a defect; the system must be capable of removing contaminated, defective, or out-of-spec products from a high-speed production flow safely, cleanly, and reliably. The four primary mechanisms for product rejection include: [Main Production Flow] -------> [Inspection Area] -------> [Approved Product Flow] | v [Activation Signal] | v [Product Rejection System] | +----------------------------+----------------------------+ | | | [Pneumatic Pusher] [Air Blast Jet] [Sweep Arm / Gate] | | | v v v Heavy boxes and Lightweight and Glass containers rigid cans flexible pouches and fragile items | | | +----------------------------+----------------------------+ | v [Secure Reject Receptacle] Pneumatic Pusher and Jack Mechanisms Functional Specifications This system utilizes a fast, heavy-duty pneumatic cylinder equipped with a lightweight, durable paddle made of aluminum or engineering plastics. Applications The pneumatic pusher is suitable for heavy and rigid products, including: Large boxes Corrugated cartons Filled metal cans Bulky secondary packaging Multi-packs High-weight rigid containers Operational Principle Upon receiving a reject signal from the inspection equipment, a high-flow solenoid valve activates, rapidly extending the pneumatic cylinder rod forward. The paddle strikes the defective product from the side, pushing it onto a parallel track, separation channel, or a locked waste bin. To manage impact energy and prevent damage to surrounding components, integrated end-of-stroke shock absorbers can be utilized. Air Blast Rejection Systems Functional Specifications An air blast is a non-contact, ultra-fast rejection method that operates using a directed burst of compressed air. Applications This method is ideal for lightweight products and easily deflected packages, such as: Flexible pouches Small tobacco packets Folding cartons Empty bottles Lightweight pharmaceutical packs Products moving at high line speeds Operational Principle A high-velocity pneumatic nozzle is mounted alongside the belt path. Upon detecting a non-conforming product, a fast-acting solenoid valve releases a precise, controlled pulse of compressed air. This air pulse is usually regulated between 4 to 6 bar, applying lateral force to the product to push it out of the main flow without any mechanical contact. Because this method lacks direct physical impact, mechanical wear is minimal, making it perfect for high-speed lines. Drop-Flap and Trapdoor Systems Functional Specifications This system is a vertical, gravity-based separation mechanism that rapidly opens the floor of the product transit path for a fraction of a second. Applications The Drop-Flap system is best suited for bulk materials and unpackaged goods, including: Grains and cereals Dry powders Raw bulk materials Chopped vegetables Unpackaged dairy components Granular food items Flowing solid compounds Operational Principle A section of the slider bed, or a hinged segment of the conveyor frame, is actuated by dual pneumatic cylinders or fast-acting rotary solenoids. When contamination or non-conformity is detected, the flap drops downward or swings open instantaneously. The defective material then falls vertically into a collection hopper positioned below the line. Once the product has passed, the flap immediately closes, and normal flow resumes. Sweep Arm and Servo-Motorized Diversion Gates Functional Specifications This mechanism uses a guiding arm with continuous, controlled contact to gently divert the product out of the primary path. Applications This method is essential for handling fragile or highly unstable products, such as: Fragile glassware Uncapped dairy containers Liquid-filled vessels Top-heavy bottles Containers sensitive to impact or sudden jerks Operational Principle The guiding arm, featuring a low-friction surface and customized profile, is driven by a high-torque servomotor or a programmable rotary actuator. Rather than delivering a sudden blow, the arm enters the belt path smoothly at an optimal angle, gradually sweeping the rejected product along a guide rail toward an accumulation zone, return loop, or dedicated reject bin. 3. Engineering Specifications for Hygienic and Washdown Environments Inspection conveyors are frequently installed in High-Care zones—areas where raw, unpackaged food, dairy, or pharmaceutical products are exposed to the ambient environment. For this reason, the structural design must not only guarantee complete cleanability but also withstand corrosive chemical agents and high-pressure washdown cycles. Engineering Parameter Structural Specifications Operational Advantage Frame Material 304 or 316L Austenitic Stainless Steel High resistance to pitting and stress corrosion cracking caused by washdown chemicals Surface Finish Ra Max 0.8 µm; sanitary polish or controlled bead blast Eliminates microscopic grooves, reducing the possibility of bacterial adhesion Weld Quality Continuous TIG weld, ground flush, and passivated Removes pinholes and overlapping areas to prevent organic material accumulation Polymer Standards Food-contact approved UHMW-PE, compliant with EU 10/2011 Prevents toxic migration and chemical leaching into the product Ingress Protection Fully sealed enclosures rated IP69K Resistance to direct, high-pressure, and high-temperature washdowns Hygienic Geometry Design Elimination of liquid pooling areas and inaccessible surfaces Ensures complete drainage of water and detergents, lowering contamination risk Sloped Surfaces for Water Drainage All horizontal frame members, legs, and motor mounts must be designed with a minimum slope of 3 to 5 degrees. This incline ensures that water and cleaning detergents drain completely during the washdown cycle, leaving no stagnant water on the equipment's surface. Open Frame Profiles Whenever possible, formed sheet metal is utilized instead of hollow tubular profiles. If hollow columns are strictly required for structural load-bearing purposes, all ends must be continuously welded and hermetically sealed. Simple push-in caps, exposed threads, or inaccessible internal cavities must not be used, as these areas can become breeding grounds for moisture and pathogens like Listeria or Salmonella. Tool-less Belt Quick-Release System The conveyor can be equipped with Cam-Over style quick-release belt tensioners. This mechanism allows sanitation crews to slacken the belt and lift it off the slider bed in under 60 seconds without the use of any tools. As a result, the internal sections of the frame become fully accessible for daily washdowns and complete sanitization. 4. Control Architecture and Smart Product Flow Management The true intelligence of an inspection conveyor lies in its control system. This system must seamlessly synchronize the data received from detection equipment with the downstream drives. +------------------+ High-Resolution Encoder +----------------------+ | Conveyor Shaft | --------------------------------> | | +------------------+ | | | | +------------------+ Digital Trigger | Central PLC | | Detection Equip | --------------------------------> | Siemens / AB / Omron | | Vision / X-Ray | | | +------------------+ | | | | +------------------+ Closed-Loop Freq. Control | | | Variable Speed | <-------------------------------- | | | Drive (VFD) | +----------------------+ +------------------+ | | Output Control v +----------------------+ | Reject Mechanism | | Pneumatic / Servo | +----------------------+ Product Position Tracking with Precise Encoder To maintain tracking accuracy across variable speeds, the conveyor shaft is equipped with a high-resolution optical or magnetic incremental encoder with an IP69K protection rating. Millimeter-Accurate FIFO Tracking When the metal detector or machine vision system identifies a defect, a rapid digital signal is transmitted to the central PLC. This PLC typically utilizes high-speed processors like the Siemens S7-1500 series or Allen-Bradley ControlLogix. Dynamic Position Mapping Rather than relying on a simple time-based timer (which introduces errors if line speed fluctuates), the system counts the physical pulses generated by the encoder as the belt moves. The PLC tracks the physical location of the defect with millimeter precision along the length of the conveyor, issuing the activation command at the exact microsecond the defective product reaches the gate or rejection mechanism. This approach guarantees impeccable rejection accuracy even if the conveyor speed changes dynamically. Control Chain sequence Defect detected by Vision or X-Ray Digital trigger sent to PLC Encoder pulses counted Defective product position mapped Reject mechanism activated Product passage to waste bin confirmed Flow Distribution and Closed-Loop Gap Control Speed Adaptation via VFD High-efficiency AC motors are managed by intelligent Variable Frequency Drives. These drives can utilize industrial communication protocols such as: EtherNet/IP PROFINET EtherCAT Upstream Line Synchronization Using photoelectric sensors, the VFD continuously monitors product density in the upstream section. If products begin to bunch too closely together from upstream machinery, the inspection conveyor automatically alters its speed profile to gently expand the gap between units. This control ensures that every product enters the inspection zone with a defined physical gap, allowing detection equipment to execute accurate scans and enabling clean, independent rejection mechanisms. Compatible Comm Protocols EtherNet/IP PROFINET EtherCAT Fail-Safe Validation Loops In critical production environments, merely issuing a reject command is insufficient. The system must verify that the defective product has actually been removed from the primary flow and has not bypassed the system toward final palletizing. Dual Reject Bin Verification The locked reject bin can be equipped with dual photoelectric sensors. A retro-reflective beam is installed at the bin's entrance to detect the passage of the rejected product. Following every reject operation, the PLC expects this sensor beam to be broken within a specific window of encoder pulses. Pneumatic Pressure Monitoring Digital pressure transmitters continuously measure the incoming air pressure supplied to the pneumatic reject cylinders. If line pressure drops below a set threshold—for instance, 5.5 bar—the rejection stroke may become weak or sluggish. In this scenario, the control system places the line into a safety interlock mode before any non-conforming product can pass the station uninspected. Reject Confirmation Protocol If the verification beam is not broken, it implies the product may have jammed on the rail, failed to make full contact with the paddle, or slipped past the rejection mechanism altogether. Under such circumstances, the PLC immediately triggers a Level 1 critical fault. Consequently: The upstream flow is brought to a controlled halt. The inspection conveyor belt stops instantly. An alarm beacon or Stack Light is illuminated. The operator is alerted to inspect the path and clear the line status. Production remains locked out until the separation fault is rectified. Main Applications of Inspection Conveyors Inspection conveyors can be designed and tailored for use across a wide array of production and packaging lines, including: Food and Beverage Industries Dairy Processing Lines Pharmaceutical Industries Cosmetics and Personal Care Products Powder Product Packaging Granular Product Packaging Canning and Tin Lines Bottle and PET Container Production Frozen Foods Secondary Packaging Lines Quality Control and Product Quarantine Centers The final design of the machine is determined based on the product type, package dimensions and weight, line speed, detection technology, rejection method, required hygiene levels, and available factory floor space. Engineering Summary A professional inspection conveyor must accomplish multiple tasks simultaneously: present the product with a stable position and precise gap, control vibration and lateral drift, synchronize with Vision, X-Ray, Metal Detector, or Checkweigher equipment, and reliably remove defective products from the line using the appropriate method. Selecting between a pneumatic pusher, air blast, trapdoor, or servo-motorized gate depends on factors such as product weight, container fragility, line speed, center of gravity, packaging type, and the necessary reject routing path. In food, dairy, and pharmaceutical lines, the selection of frame material, weld quality, surface finish, drainage capability, washdown accessibility, and the IP rating of electrical components is just as critical as transfer capacity. The combination of stable mechanical design, intelligent control, encoder-based tracking, and fail-safe reject validation loops guarantees product integrity and the ultimate reliability of the quality control process. Design and Manufacture of a Custom Inspection Conveyor for Your Production Line Contact our technical experts for an engineering consultation, line requirement review, and pricing estimation. Based on your product type, control equipment, and factory hygiene standards, our engineers will design and propose the most precise system for your needs. Request Consultation and Quotation View Other Conveyors
