Piping and Instrumentation Diagram

What is P&ID?

A P&ID or Piping and Instrumentation Diagram is a detailed engineering drawing that defines the complete mechanics of a process system: main equipment with tag numbers, line paths with line numbers, pipe size, and material specification, valve types, measurement and control instrumentation, control loops, utility connections (steam, water, compressed air, etc.), flow direction, drains and vents, bypasses, tie-in points, alarm systems, interlocks, and pressure relief valves (Relief).

Unlike high-level conceptual diagrams, a P&ID is an operational working document; it provides sufficient detail for construction, installation, testing, operation, and troubleshooting to all project stakeholders. Process engineers, piping designers, instrumentation teams, mechanical contractors, plant operators, and maintenance staff all reference the same master document, effectively eliminating cross-departmental communication errors.

Why is Having a P&ID Essential?

A P&ID is far more than a technical drawing; it is the decision-making backbone of the entire plant:

Process Understanding: Displays exact operational sequences, material flow paths, and equipment interactions.
Construction & Installation: The benchmark for piping execution, equipment positioning, and instrument placement according to design.
Commissioning & Startup: Provides the checklist for line testing, loop checks, and plant startup scenarios.
Operations & Maintenance: Enables rapid line tracing, isolation valve identification, and preventive maintenance scheduling.
Troubleshooting: Minimizes downtime during alarms or failures by allowing operators to trace root causes quickly on the diagram.
Safety & Compliance: Identifies relief valves, emergency shutdown systems (ESD), alarms, and interlocks during HAZOP safety studies.
Plant Expansion & Modifications: Evaluates system capacity, locates tie-in points, and manages modifications with accurate documentation.

Even if a processing facility was originally constructed without proper drawings, reverse-engineering an As-Built P&ID from existing site conditions is entirely achievable—instantly streamlining automation control, maintenance routines, and future expansion planning.

Differences Between PFD and P&ID

A PFD (Process Flow Diagram) presents a bird's-eye view of the primary process stream and key operating conditions, whereas a P&ID details the exact same process at a granular, actionable engineering level. The PFD is the starting point of process design; the P&ID is its final, executable deliverable.

Comparing Detail Levels of PFD and P&ID
Feature	PFD	P&ID
Level of Detail	Conceptual & Overview	Detailed & Actionable
Main Equipment	Included	Included with Tag Nos. & Full Specs
Instrumentation	Limited	Comprehensive
Valves	Limited	Detailed with Type, Size & Actuation
Control Loops	Not Included	Fully Detailed
Drains, Vents, Bypasses	Not Included	Fully Detailed
Maintenance & Troubleshooting Use	Limited	Extensive
Construction & Commissioning Use	Limited	Direct & Executable

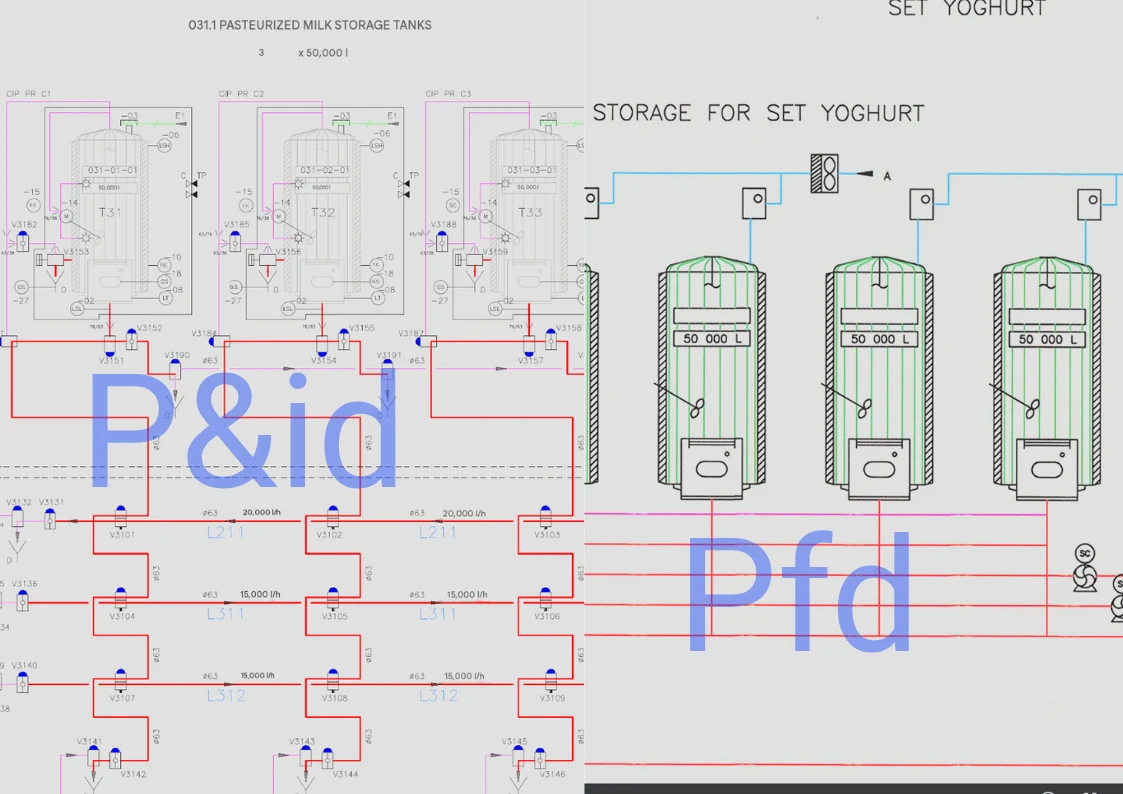

PFD vs P&ID comparison diagram — The Process Flow Diagram (PFD) offers a high-level process summary; the P&ID maps the identical path with full piping, valve, and instrumentation details.

What Elements are Included in a P&ID?

Equipment and Piping

Major equipment (vessels, agitators, pumps, heat exchangers, filters, etc.) with tags and capacities
Line numbers, diameters (sizes), pipe specs, and fitting specifications
Flow direction indicators and tie-in points to existing utility networks
Utility supply lines: steam, chilled/hot water, compressed air, and electrical connections

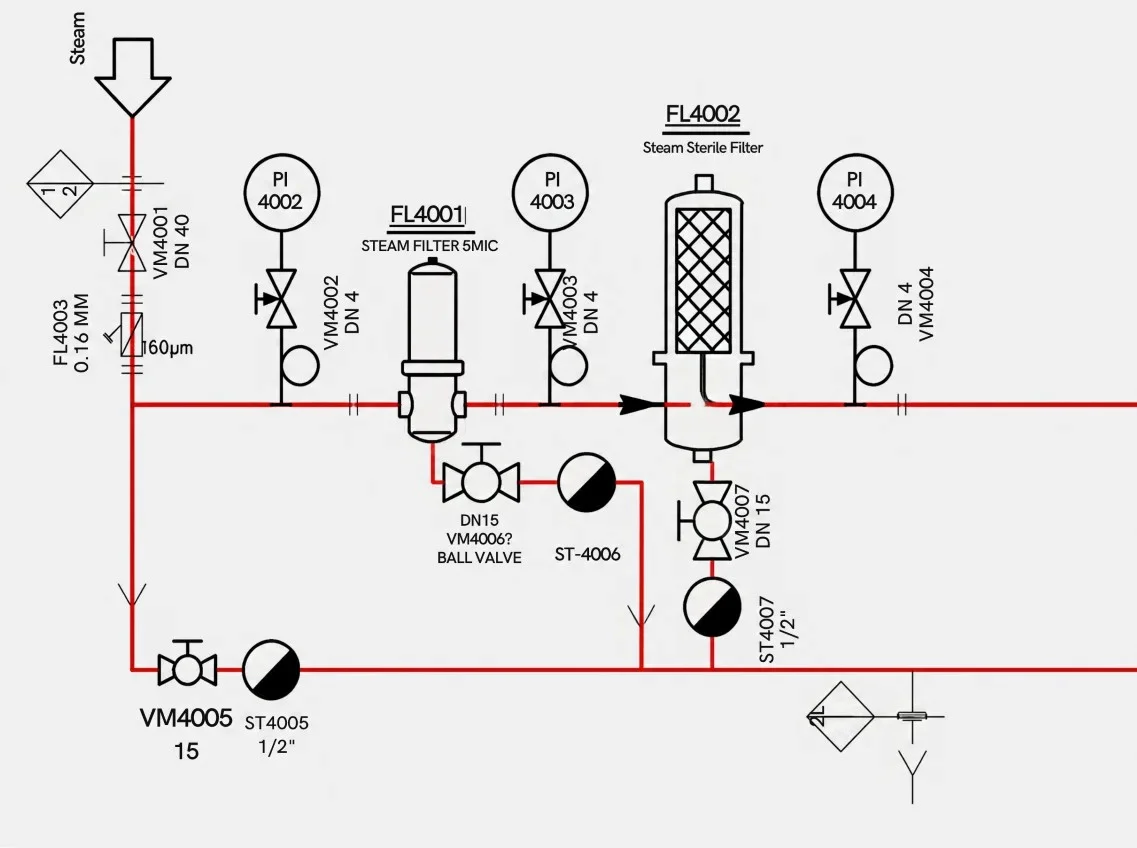

Valves and Instrumentation

Valve types: isolation, control, check, diaphragm, sampling, etc.
Line drains, vents, and piping bypass loops
Instruments: pressure, temperature, flow, level, conductivity transmitters, etc.
Control loops, interlocks, alarm indicators, and pressure relief systems

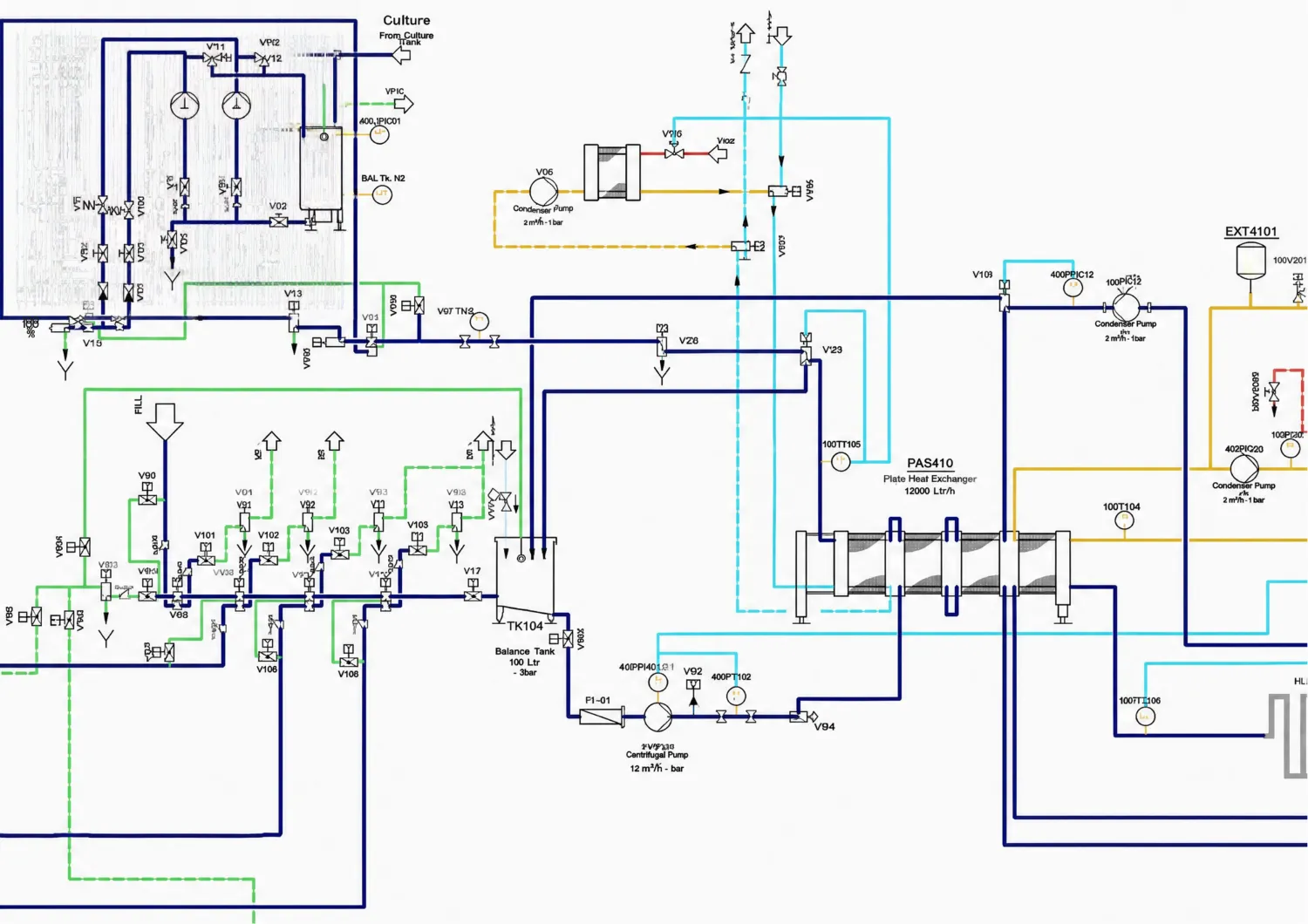

pid-ghee plant — Sample Piping and Instrumentation Diagram featuring equipment tags, line numbers, and active control loops.

P&ID in the Project Lifecycle

A P&ID is not a disposable document; it remains a living document throughout the facility's entire operational lifespan:

Design PhaseTranslating PFDs and process physics into executable engineering drawings
Procurement & ConstructionServes as the baseline for piping execution and installation quality control
CommissioningFacilitates line testing, loop checks, and pre-startup reviews
OperationsReference manual for operator training, standard operating procedures (SOPs), and production
Maintenance & TroubleshootingAccelerates system tracing and component fault detection
Plant ExpansionBasis for adding new equipment lines without interrupting active process utilities
As-BuiltUpdated drawing reflecting exact final site conditions and physical installations

Every modification to equipment, piping, or instrumentation must be immediately updated on the P&ID; otherwise, the document deviates from physical reality, losing its operational authority. Strict revision management and version control are critical to maintaining this document.

Relationship of P&ID with BOM and MTO

A major technical output of a structured P&ID is the precise extraction of the MTO (Material Take-Off) and BOM (Bill of Materials): exact quantities and sizes of valves, piping lengths, spec details, fittings, instruments, and hardware. This data feeds directly into procurement, cost estimation, and supply chain management.

However, a P&ID does not cover every technical variable; equipment data sheets and technical specifications are necessary for procurement execution. The P&ID defines "what goes where and how it connects," whereas data sheets establish "the exact model, rating, and physical construction."

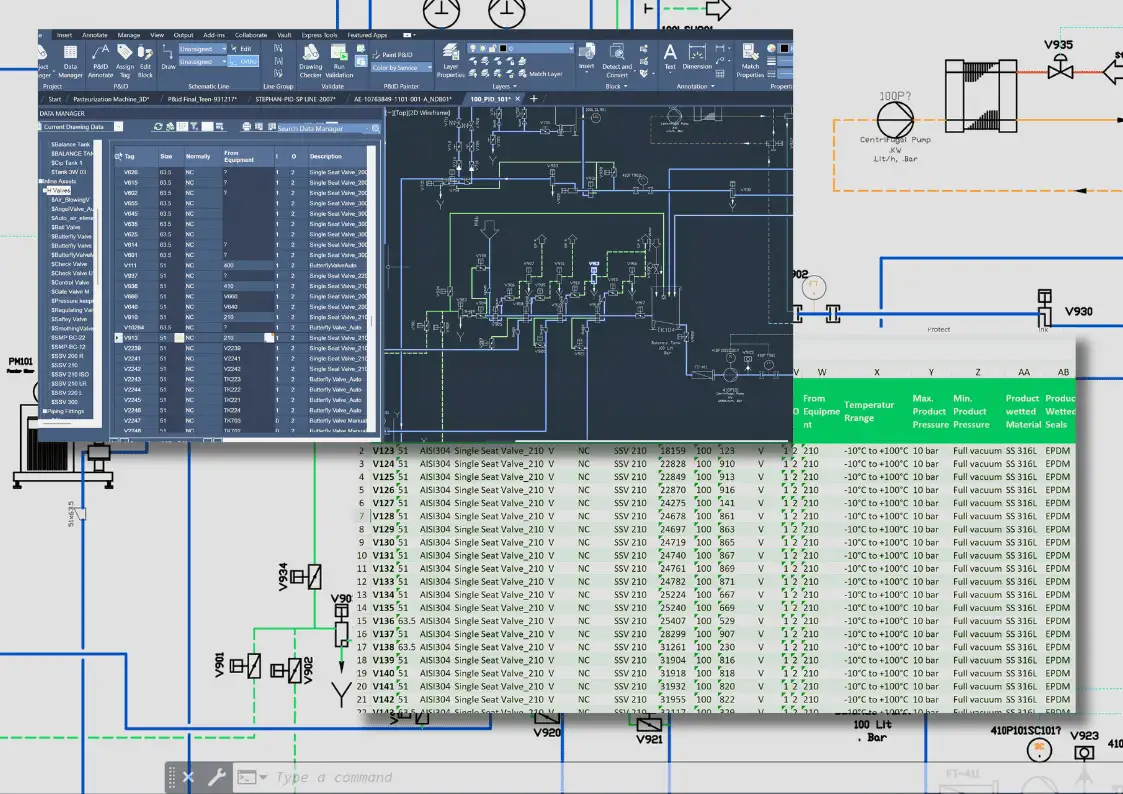

Plant 3D P&ID design and BOM generation — Structured Bills of Materials (BOM) and Material Take-Offs (MTO) can be extracted directly from a data-driven P&ID.

Connecting P&ID to Automation and Control

The P&ID is the foundation of industrial automation engineering. The input/output list (I/O List) is extracted directly from instrument tags on the diagram; the Control Philosophy and Cause & Effect matrix are drafted based on those defined loops and interlocks; and the PLC/DCS programming alongside HMI visualization screens are built directly from these drawings.

If the diagram is inaccurate or outdated, control code will clash with actual site hardware—causing interlock faults, false alarms, and extended commissioning delays. Automation engineers consider an accurate P&ID the mandatory starting point for control system design.

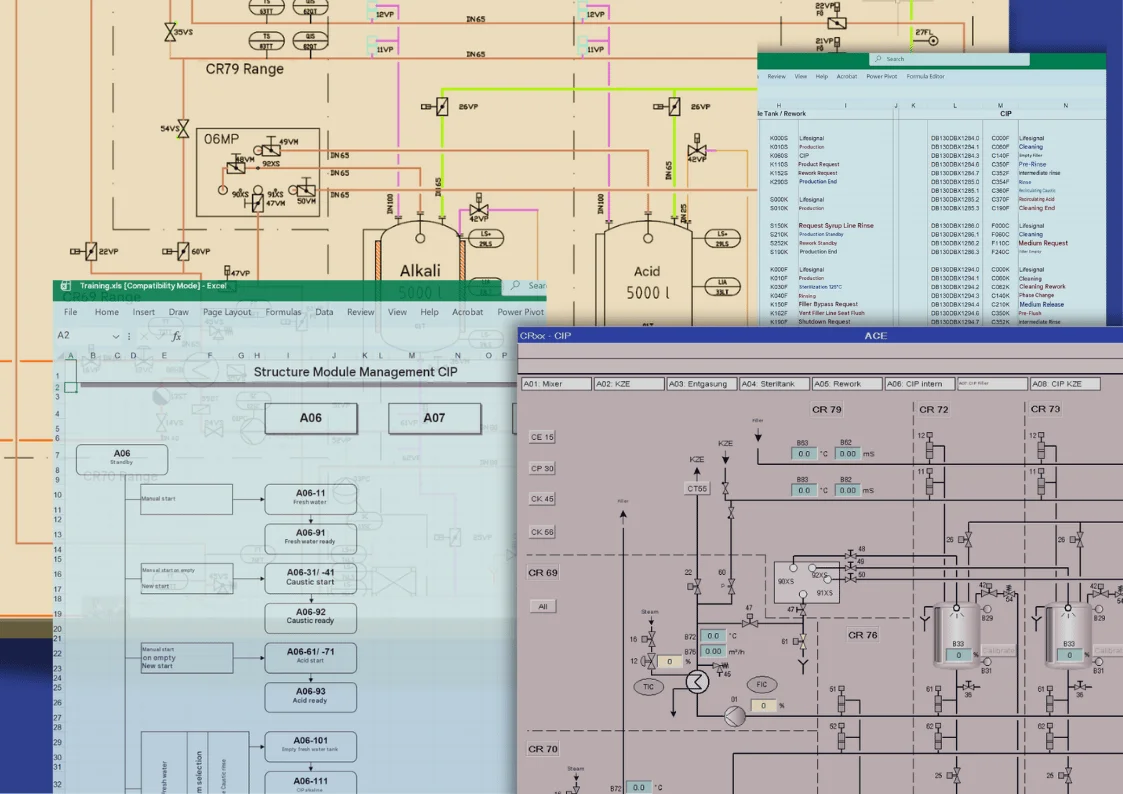

P&ID connection to HMI and CIP automation — P&ID is the baseline for the automation workflow: from I/O list generation to control logic and HMI development.

P&ID Applications Across Industries

P&ID is a global engineering standard applied anywhere fluid handling, processing equipment, and automation converge: food and beverage, dairy, pharmaceutical, chemical, oil and gas, petrochemical, water treatment, and power utilities. While symbol sets and detail levels vary across sectors, the core architectural logic (Equipment + Line + Valves + Instruments + Control) remains universal.

In hygienic industries such as food, dairy, and biopharma, additional sanitary design requirements are integrated directly into the P&ID: full CIP flow routing, mixproof single-seat and double-seat valve configurations, sterile connection ports, and fully self-drainable piping slopes. These specialized standards and manufacturer-specific symbols are detailed in the subsequent dedicated guides in this series.

Smart P&ID with AutoCAD Plant 3D

Drafting P&IDs using plain 2D CAD blocks requires manual tag management, line numbering, item counting, and revision tracking—a workflow prone to severe errors on large industrial projects. Utilizing a smart data-driven approach with AutoCAD Plant 3D transforms drawings into an integrated database:

Smart Symbol Library: Pre-defined blocks embedded with connection points and technical attributes.
Automated Tagging & Numbering: Tag generation for equipment, lines, and instruments adhering to project coding rules.
Automatic Size Propagation: Placing a valve or reducer automatically inherits the line size; modifying line specs updates inline components dynamically.
Automated Line Trimming: Inserting inline components automatically trims underlying line geometry cleanly.
Bi-Directional Excel Sync: Export component data to Excel, update tags or specs offline, and re-import directly into drawings.
Error Reduction: Eliminates manual counts and repetitive revisions, minimizing costly human error during procurement.
Customization: Project-specific standard symbols and company engineering standards are configured directly inside the software environment.

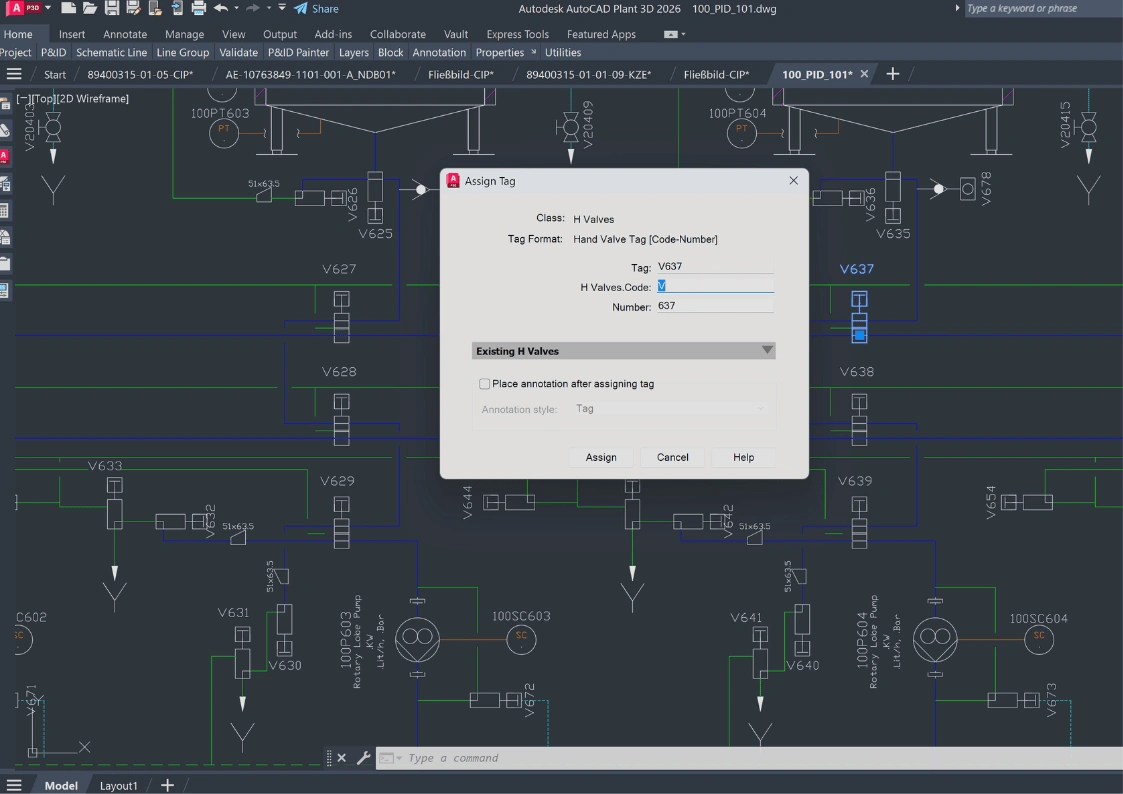

AutoCAD Plant 3D Smart P&ID interface — In AutoCAD Plant 3D, every symbol represents an intelligent component tied to a dynamic database for seamless tag and spec management.

How to Read a P&ID Drawing

Reading a P&ID effectively relies on understanding core symbols and drafting conventions. Drawings typically start with a Title Block containing sheet numbers, revision tables, and symbol legend keys. Reading begins by following the main process line: tracing media from primary equipment inlets to outlets while reviewing inline valves, instrumentation, and utility tie-ins along the path.

Instrument tags reveal system functionality: letter prefixes indicate measured variables (e.g., P for Pressure, T for Temperature, F for Flow) combined with device functions (Transmitter, Indicator, Controller). Mastering these standardized conventions turns a complex drawing into a clear roadmap of plant operations.

FANPOD Process Engineering P&ID Services

With over a decade of specialized expertise in hygienic process engineering for the food, dairy, beverage, and pharmaceutical sectors, FANPOD delivers end-to-end P&ID engineering services: from smart AutoCAD Plant 3D drafting to generating precise As-Built drawings for existing operating plants lacking original documentation. Our project delivery follows a structured methodology:

Information GatheringConsolidating process specifications, site data, and operational requirements
Rule DefinitionEstablishing symbol standards, tag conventions, and project spec rules
Smart DraftingExecuting data-driven P&IDs in Plant 3D backed by customized component libraries
Design Review & RevisionIntegrating client feedback, resolving clashes, and enforcing version control
Final Delivery & As-Built SyncIssuing final native files, vector PDFs, and post-installation site updates

Technical Scope Boundaries & Supplement Documents

A P&ID does not replace detailed equipment data sheets, component specifications, or sizing calculations. Procurement and fabrication require dedicated data sheets and mechanical specifications. Proprietary hygienic symbols from major equipment OEMs (such as Alfa Laval, Tetra Pak, and GEA) alongside real project case studies are fully explored in our dedicated specialized engineering guides.

Next Technical Guides in This Series

This page serves as the master baseline reference for P&ID. Two specialized technical guides are available providing deeper engineering insights:

Specialized Guide 1

Hygienic P&ID for Food, Dairy & Pharma

Sanitary drawing design requirements: full CIP/SIP cleaning circuits, mixproof double-seat valve configurations, sterile sampling ports, self-draining pipe slopes, and manufacturer-specific symbol sets from Alfa Laval, Tetra Pak, and GEA—complete with real industrial case studies.

View Food & Pharma P&ID Guide → Specialized Guide 2

Smart P&ID Development via AutoCAD Plant 3D

Data-driven workflows vs manual drafting: Excel bi-directional data export/import, dynamic tag updates, intelligent line trimming, automatic reducer insertion, and clear technical distinctions between P&ID metadata and 3D plant models without marketing exaggeration.

View Smart Plant 3D Guide →

Links to upcoming specialized guides will be active upon final publication; URLs are registered above.
