P&ID Design for Food, Dairy, Beverage & Pharmaceutical Industries

Contrary to common belief, Piping and Instrumentation Diagrams (P&IDs) in sanitary and hygienic industries exhibit far higher engineering complexity than continuous oil & gas lines due to product segregation requirements, automated Clean-In-Place (CIP) without dead-legs, complex valve clusters, and stringent EHEDG and 3-A hygienic standards.

Request Smart P&ID Design & Consultation View Sample Diagrams & Symbol Sets

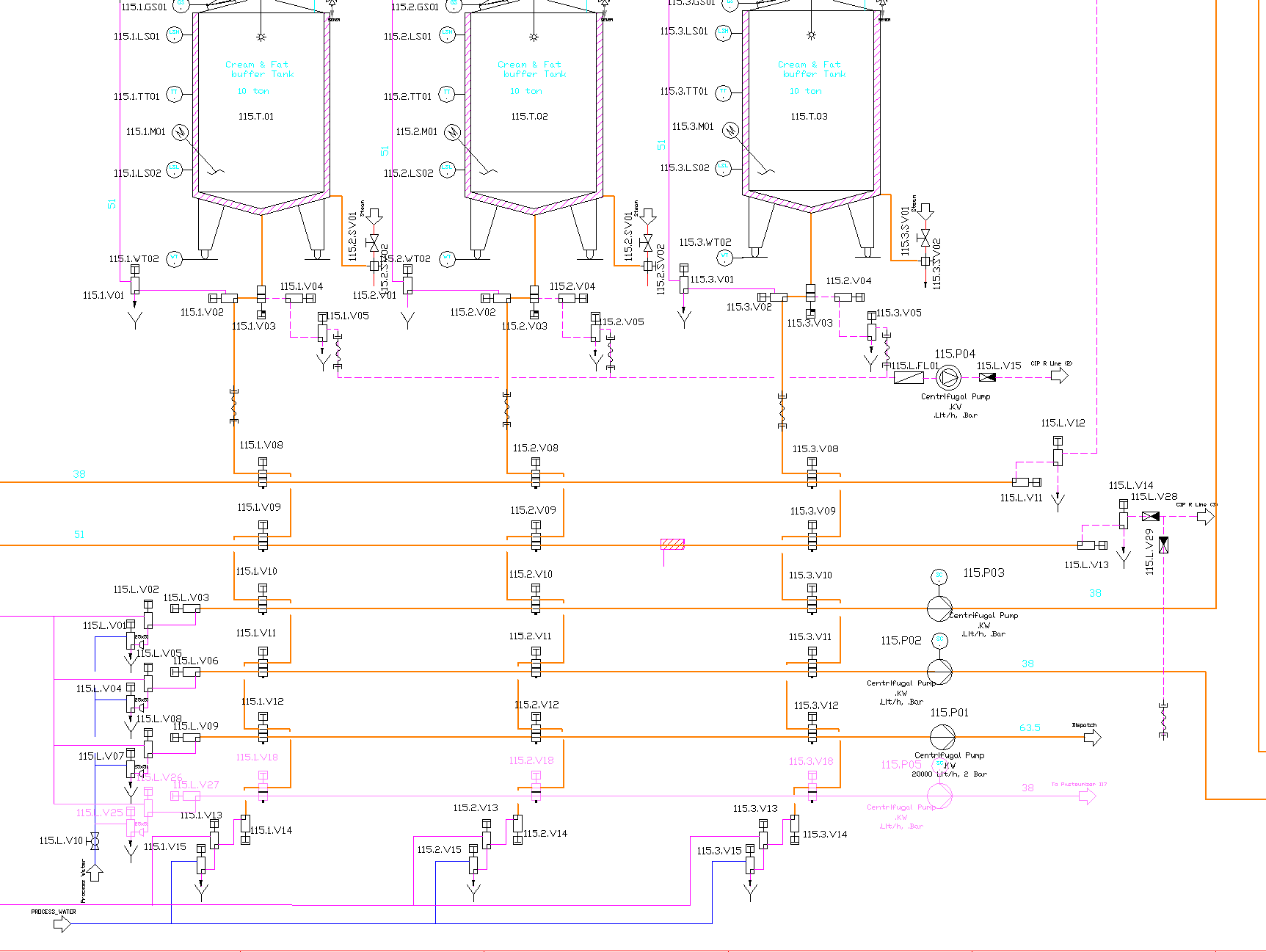

Mixproof Cluster Valve P&ID diagram

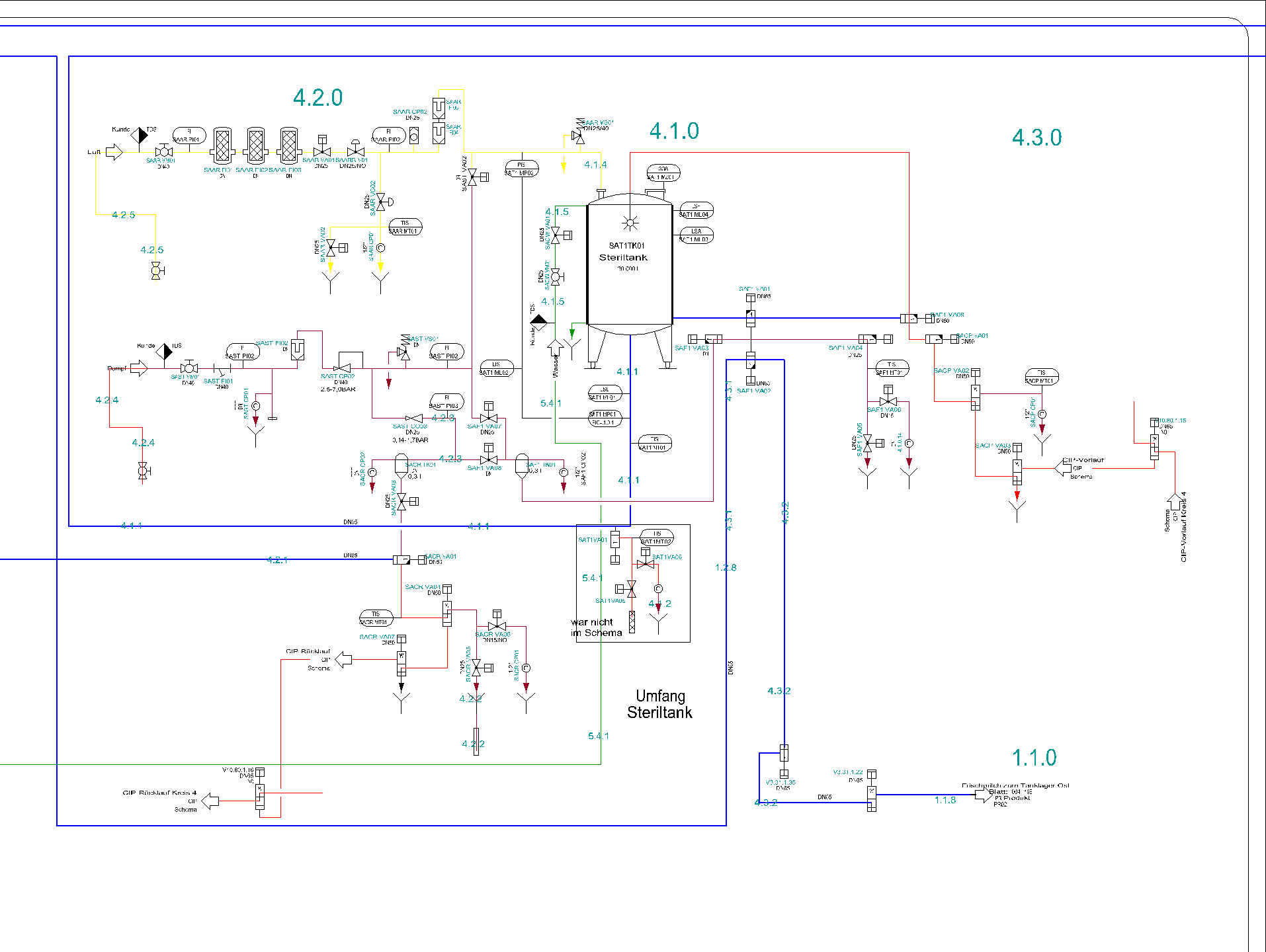

GEA P&ID

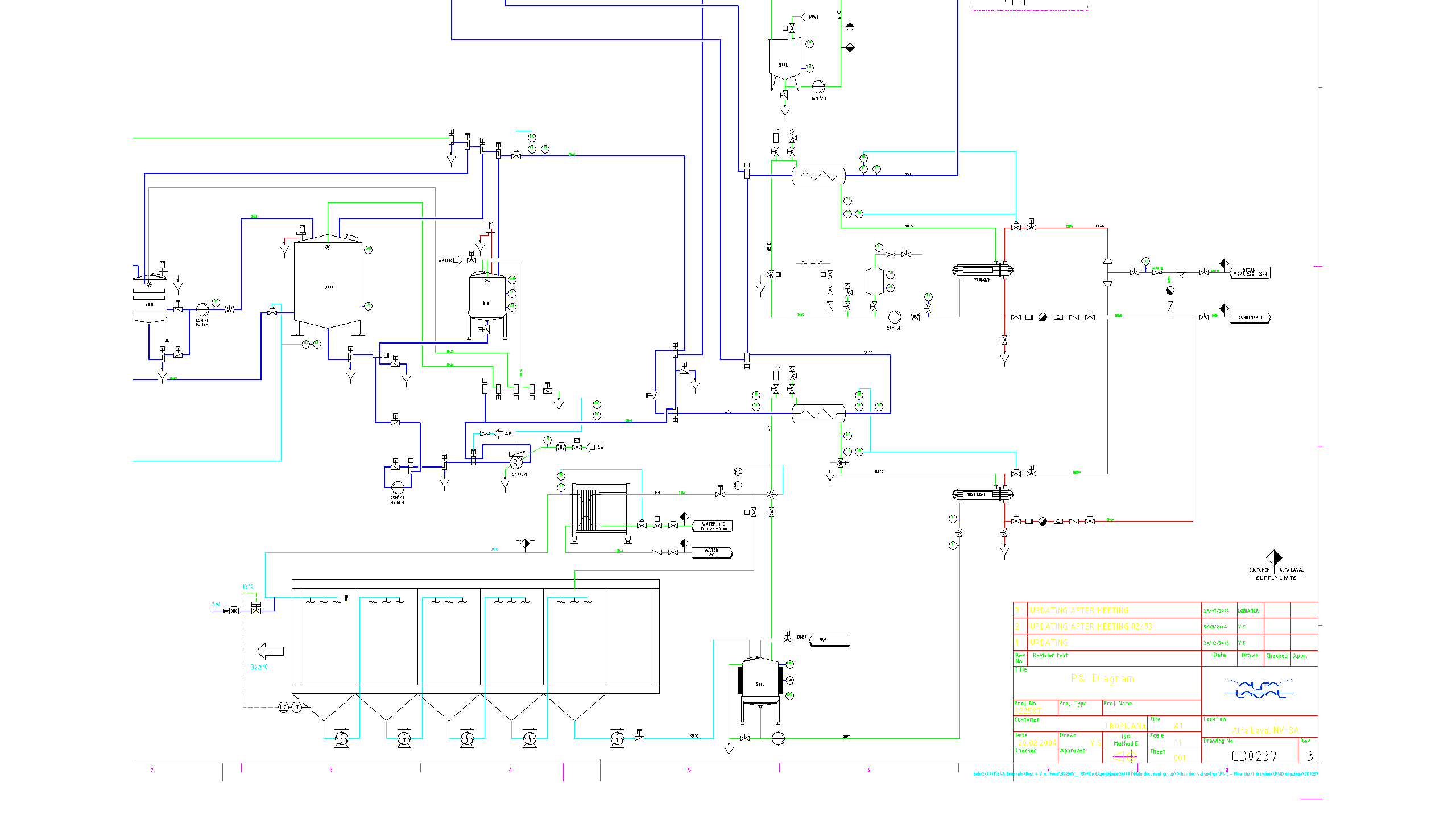

Alfa Laval P&ID

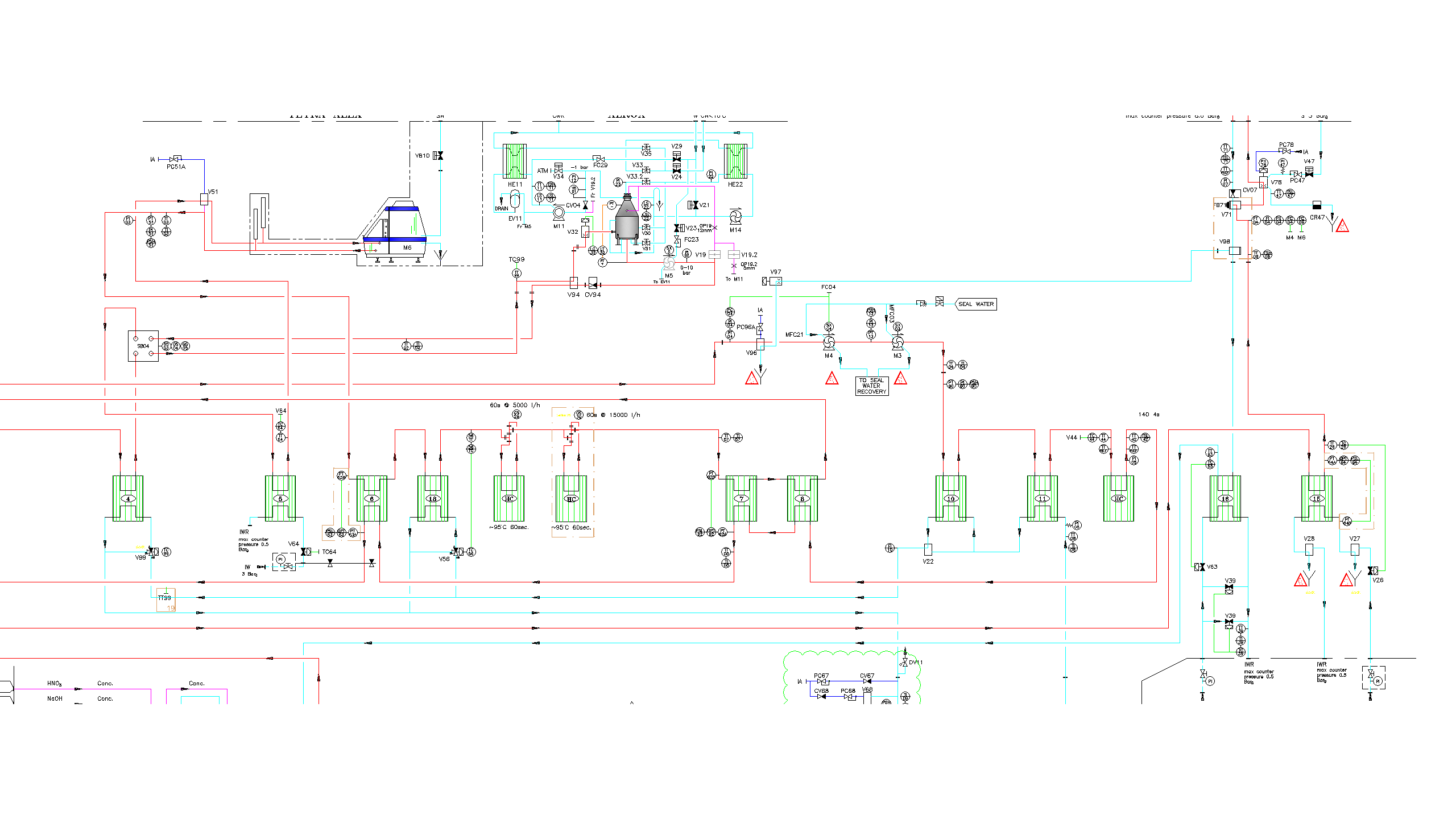

Tetra Pak P&ID

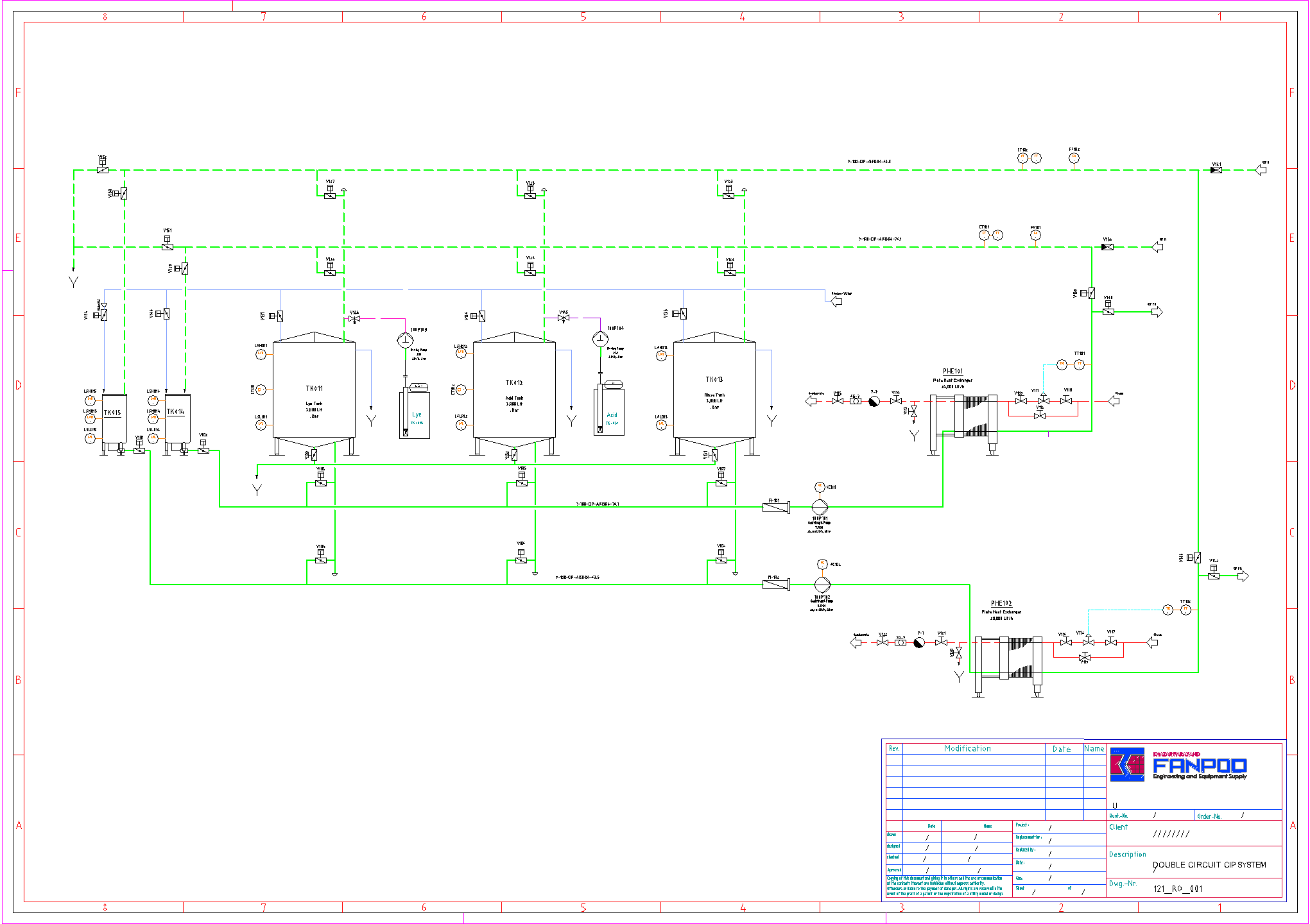

CIP diagram
1

Why Food & Pharma P&ID is Not Simpler Than Oil & Gas

A widespread misconception among some engineers and students is that oil, gas, and petrochemical plants are "complex" due to extreme pressures and temperatures, whereas food and pharmaceutical facilities are "simple." FANPOD’s hands-on project engineering experience and technical training courses consistently prove otherwise.

Fundamental Differences in Branching and Piping Design

In an oil & gas facility, taking a branch off a main pipeline typically involves adding a standard Tee and a block valve because lines run continuously and transmitted media requires no daily internal sterilization. However, in dairy and beverage processing, a simple branch without sanitary design is unacceptable; every branch risks creating a bacterial trap (dead-leg), and the system must be independently washed, sanitized, or drained without disrupting active production elsewhere.

When experienced oil & gas automation and mechanical engineers encounter a sanitary valve cluster matrix at a milk reception area or storage tank farm for the first time, they are often astonished by the sheer density of automated valves, return lines, leakage detection cavities, and matrix interconnectivity. In hygienic processing, product streams, sterile water, caustic soda, and acid must be routed simultaneously in total physical isolation.

Scarcity of Technical Resources and Standard Drawings Online

While the internet offers abundant standardized ISA-5.1 refinery P&IDs, comprehensive hygienic P&IDs adhering to global OEM standards (e.g., GEA, Alfa Laval, Tetra Pak, SPX Flow) are rarely public due to proprietary technical value. FANPOD fills this technical void by delivering expert engineering based on specialized sanitary symbol libraries.

2

Core Process Engineering Fundamentals: The Calculation Baseline

Before evaluating sanitary specifics, it is essential to emphasize that a food process engineer applies the identical classical principles of chemical engineering and fluid mechanics as a petrochemical engineer:

Heat Transfer

Pressure drop calculations, indirect heat exchange in multi-stage plate and tubular exchangers, heat regeneration exceeding 90%, and precise steam/ice water control.

Mixing & Rheology

Rheological modeling of non-Newtonian fluids (cream, sauces, pharmaceutical syrups), agitator power, vortex calculations, and shear stress limits.

Dosing & Formulation

High-precision inline injection of additives, enzymes, stabilizers, and acids/bases using high-accuracy magnetic and Coriolis flowmeters directly on the P&ID.

Storage & Mass Balance

Level control, multi-zone cooling jackets, N2 gas blanketing, and hygienic tank venting equipped with 0.2-micron sterile air filters.

3

The Sanitary Design Layer: Engineering for Clean-In-Place (CIP/SIP)

The critical distinction lies here: In food and biopharma, piping is engineered not only to convey product, but primarily to guarantee 100% automated cleaning (CIP) and sterilization (SIP). Removing the hygienic requirements reduces the system to basic hydraulic pipe routing.

Core Pillars of Hygienic Piping Architecture:

  • Zero Dead-Legs (No Dead-legs): Per EHEDG guidelines, dead-end branch lengths must not exceed L/D > 1.5 (or max 2D) to ensure turbulent cleaning fluid reaches every internal surface.
  • Self-Drainability & Pitching: All pipeline runs must maintain a minimum slope of 0.5% to 1.0% toward defined low-point drains to eliminate standing chemical solutions.
  • Sanitary Zoning & Barriers: Physical and operational isolation of high-risk areas (Aseptic/High Care) from general utility zones using active steam barriers.
  • Absolute Product & CIP Segregation: Guaranteeing zero cross-contamination between food products and cleaning chemicals under all operating conditions, even during operator error or actuator failure.

Risk of Cross-Contamination

A single drop of cleaning chemical leaking into a finished dairy or pharmaceutical batch carries catastrophic health risks and financial liability. Consequently, hygienic P&IDs mandate mixproof double-seat valves featuring atmospheric leakage detection chambers.

4

Valve Clusters: The Routing Heart of Hygienic P&IDs

Modern liquid receiving, processing, and distribution systems replace manual swing bends with automated valve matrix clusters. Hygienic P&IDs explicitly depict porting and physical valve logic:

Valve / Component Type Technical Designation P&ID Operational Mechanism Primary Process Application
Mixproof Double Seat Valve Mixproof Double Seat Valve Two independent valve seats with an intermediate atmospheric leakage chamber; allows simultaneous product flow in one line and CIP wash in the adjacent line with zero mix risk. Tank farm manifolds, milk reception matrices, pasteurizer feed networks.
Single Seat Changeover Valve Single Seat Changeover (SSV) Directs inlet flow to one of two outlet ports using a sanitary plug and spring-return pneumatic actuator. Diverting product to alternate storage tanks, filler supply branches, CIP routing.
Sanitary Shut-off Valve Shut-off Single Seat Valve Provides direct on/off isolation using FDA/USP Class VI compliant EPDM or FKM seals. Pump inlets/outlets, utility lines, tank bottom drains, WFI loops.
Double Block and Bleed Double Block & Bleed (DBB) Two block valves in series with an intermediate vent/bleed valve to ensure absolute isolation against chemical ingress. SIP steam isolation barriers and pharmaceutical aseptic process connections.
Table 1: Key sanitary valve types and applications in FANPOD hygienic P&IDs
/* Sample Mixproof Port Interlock Logic in Distribution Matrix: Line A: Product Milk to Pasteurizer (P = 3.5 bar, T = 4°C) Line B: CIP Acid Return to CIP Kitchen (P = 2.0 bar, T = 65°C) Valve State: Closed | Leakage Cavity: Open to Drain (Zero Pressure) -> 100% Fail-Safe Physical Separation Guaranteed */
5

Velocity Constraints and CIP Hydraulic Sizing Calculations

A common error in non-specialized P&ID drafting is ignoring fluid velocity regimes and shear stress effects on delicate food products.

Velocity Limits in Sensitive Media Lines:

In raw milk transfer and shear-sensitive media lines, linear fluid velocity is typically capped between 1.2 and 1.5 m/s to prevent fat globule damage, emulsion breakdown, and pump cavitation.

Design Note: The 1.5 m/s limit is an industry benchmark rather than a universal physical constant; design velocities depend on media viscosity, allowable pressure drops, pump specifications, and project Design Basis.

Sample Calculation: Raw Product Line Sizing

For conveying raw milk at a flow rate of 10 metric tons per hour (density ~1030 kg/m³, equivalent to ~9.7 m³/h volumetric flow):

  • Selecting a standard 51 mm (2-inch, ID ~47.5 to 49 mm) sanitary stainless steel line yields a fluid velocity of 1.4 to 1.5 m/s, falling within the safe velocity range.
  • Increasing flow rates beyond 10 tons/hour on a 2-inch line elevates velocity above 1.5 m/s, requiring an upsize to DN65 (2.5-inch) to protect product integrity.

CIP Hydraulic Flow Calculations for Storage Vessels

Unlike product lines, Clean-In-Place (CIP) circuits require higher velocities (1.5 to 2.0 m/s minimum in supply lines) to generate high Reynolds numbers and mechanical wall shear stress to strip protein and mineral soils.

Sizing Example for a 100-Ton Milk Storage Silo (CIP Circuit):

Consider a 100-ton milk storage silo with a diameter of ~4 m and a shell height of ~8 m (total internal wetted surface area ~125 m²):

  • To achieve complete wall coverage using a hygienic rotary spray ball with a standard coverage rate of ~3.0 to 3.5 L/min per m² of wetted surface, the required CIP supply flow rate calculates to approximately 24 m³/h.
  • To deliver 24 m³/h, the CIP supply line is sized at DN65 (~2.0 m/s velocity), while the CIP return line utilizes an appropriately sized line with a scavenge self-priming pump and proper pitching.

Engineering Disclaimer: These values represent schematic calculations based on standard design benchmarks and must be verified by process engineers against spray ball manufacturer performance curves and system pressure drops for specific projects.

6

Pasteurizer P&ID Design: Thermal Sections, Regeneration & Utilities

A multi-stage plate pasteurizer represents one of the most complex modules in hygienic process P&IDs, managing interacting fluid circuits operating at differing pressures and temperatures:

  • Heat Regeneration Section: Heat exchange between hot pasteurized product and incoming cold raw product, achieving over 90% thermal energy recovery. P&IDs must incorporate Differential Pressure Control (PDC) to maintain higher positive pressure on the pasteurized side, ensuring raw milk cannot cross-contaminate pasteurized product if a plate gasket leaks.
  • Steam Heating Section: Steam modulation control valves (TCV), sanitary steam traps, secondary hot water loops, holding tubes equipped with multiple temperature transmitters (TT), and a certified Flow Diversion Valve (FDV) to divert under-heated product.
  • Cooling Sections (Tower & Ice Water): Initial cooling using cooling tower water, followed by final chilling to 4°C using ice bank water (1°C) or glycol solution loops.
7

Specialized Applications: Milk Reception, Beverage, Pharma & Flow Panels

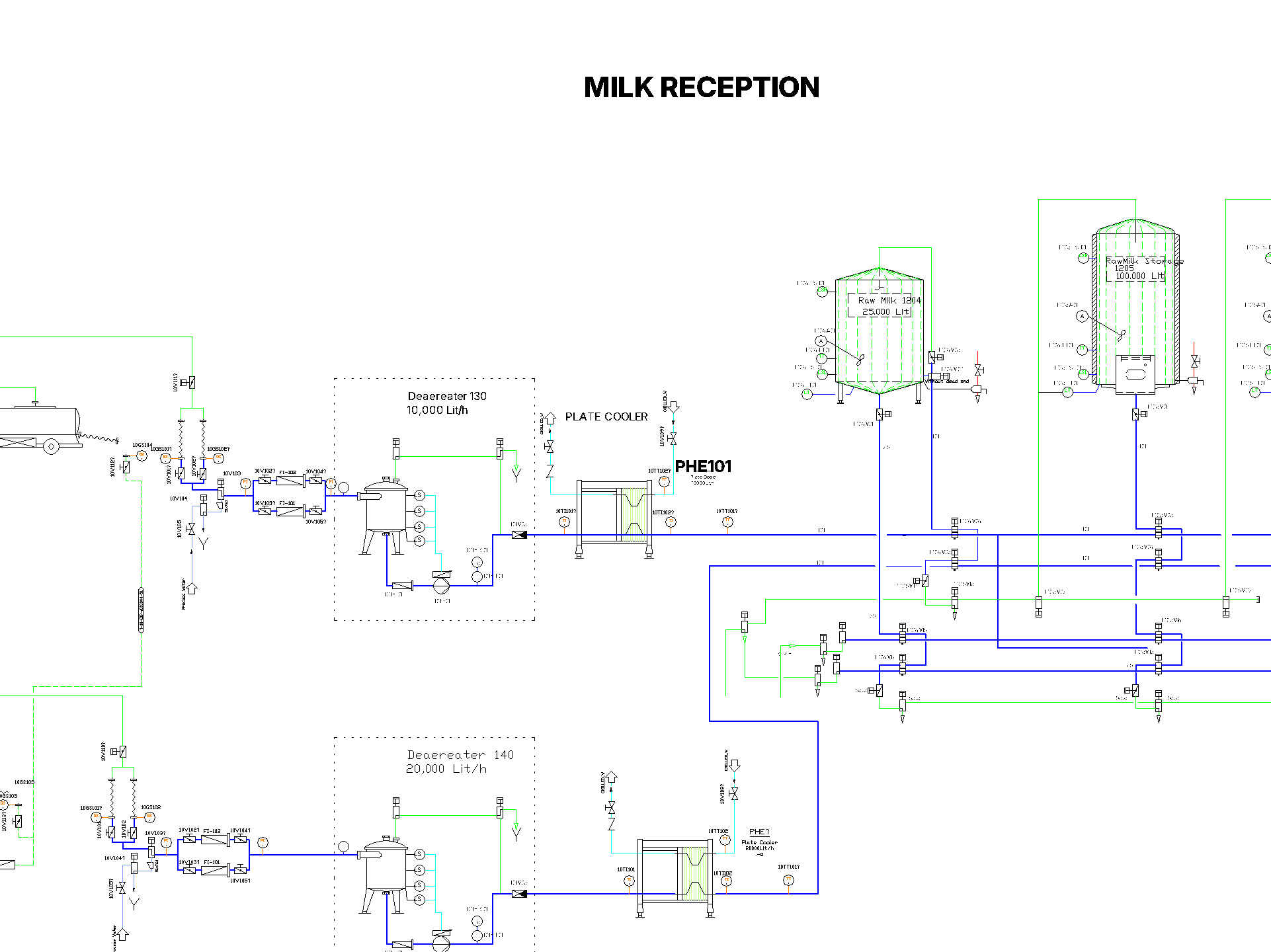

1. Milk Reception & Silo Tank Farms

Milk reception P&IDs incorporate deaeration vessels, weights/measures certified custody-transfer flowmeters, reception plate coolers, aseptic sampling valves, and sanitary manifolds feeding 100-ton storage silos.

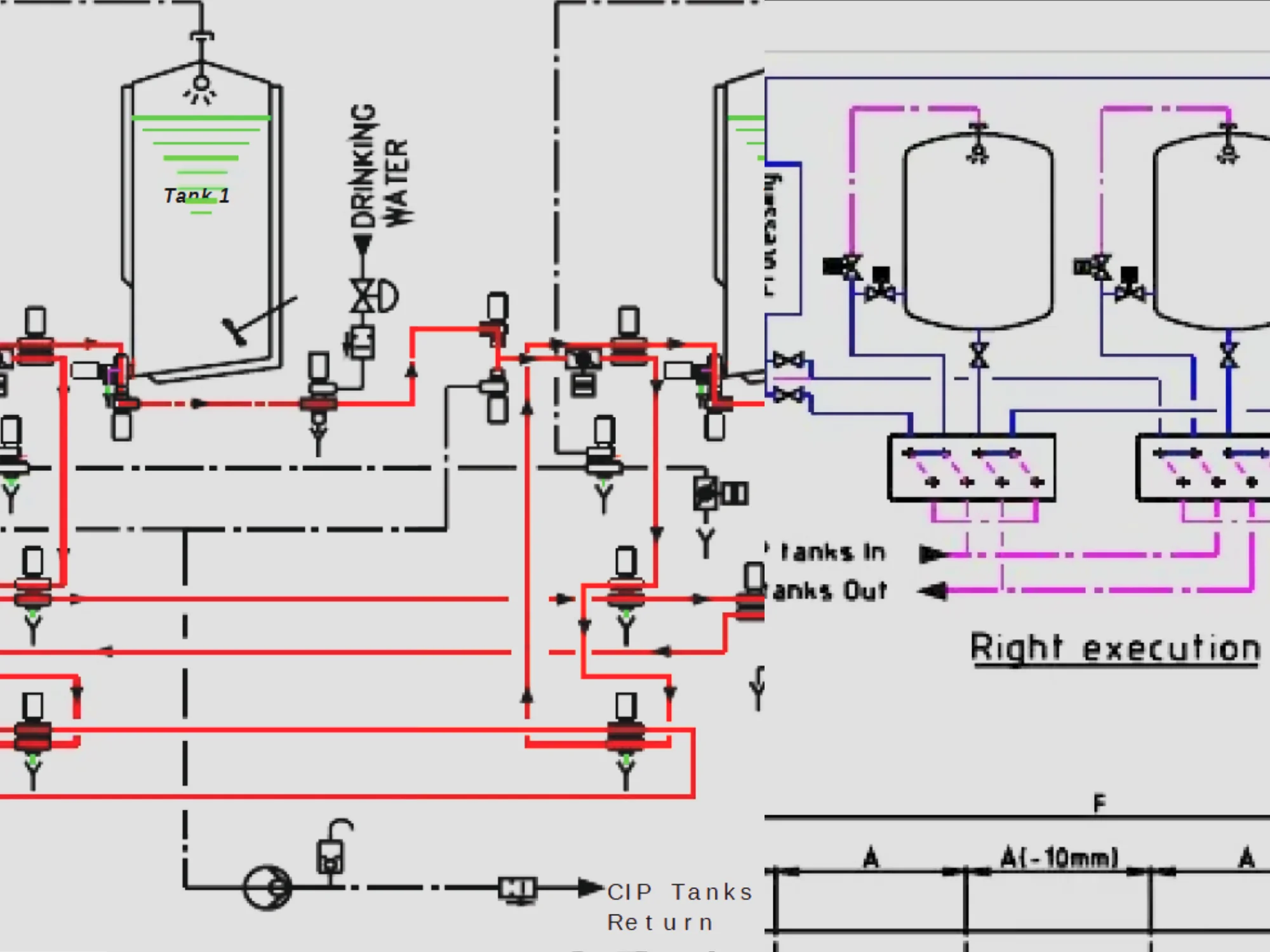

2. Swing Bend Flow Plates vs. Automated Mixproof Valve Clusters

Evaluation Criteria Manual Swing Bend Panels (Flow Plates) Automated Mixproof Valve Clusters
Physical Isolation Complete physical disconnection of lines (100% fail-safe against leaks); requires operator presence to reposition U-bends. Automated physical separation via atmospheric leakage chamber between dual valve seats.
P&ID Monitoring Requires proximity sensors installed on every port to verify physical position prior to starting supply pumps. Continuous position feedback via intelligent control heads (ThinkTop / AS-Interface / IO-Link) on every actuator.
Product Loss & Human Error Risk of product drips during manual disconnects; potential operator error in routing media to wrong ports. Zero-drip line switching in a fully closed piping system; eliminates human error in flow routing.
Process Speed & CIP System downtime required for manual line repositioning by shift technicians. Instantaneous automated line switching controlled by PLC logic; rapid multi-track CIP execution.
Table 2: Technical and operational comparison between manual flow plates and automated valve clusters

3. Specialized Features in Biopharma and Beverage Lines

  • Pharmaceuticals & WFI: 316L stainless steel tubing with electro-polished internal surfaces (Ra < 0.4 µm), hygienic diaphragm valves, continuous TOC/conductivity monitoring, and Clean Steam (SIP) sterilization.
  • Beverages & Juices: Inline CO2 carbonation, vacuum deaerators, high-pressure homogenizers, and flash pasteurization with aroma recovery units.
8

Methodology Comparison: Traditional Drafting vs. Smart Plant 3D P&ID

Legacy 2D CAD drafting relies on unlinked lines and graphics, leading to procurement mismatches, tag duplication, and costly site re-work. FANPOD deploys smart data-driven workflows using AutoCAD Plant 3D:

Engineering Feature Legacy 2D Drafting (Standard CAD) Data-Driven Smart Workflow (AutoCAD Plant 3D at FANPOD)
Component Nature Graphical lines and plain text blocks with no data intelligence Smart components connected to a centralized database (Size, Spec, Material, Port Data)
Tagging & Numbering Manual text entry; high risk of duplicate tags or typos Automated, unique tag generation enforcing project coding rules
MTO / BOM Extraction Manual line item counting; slow and highly error-prone on large projects Instant single-click generation of accurate MTO reports exported directly to Excel
Bi-Directional Syncing Non-existent; every modification must be updated manually per sheet Batch editing specs/tags in Excel with bi-directional import back into drawing sets
Pipe & Valve Spec Matching No automated check if connected valve size matches line specification Automatic line-size inheritance by inline components with automatic reducer placement
Table 3: Technical advantages of FANPOD’s smart data-driven P&ID workflow over traditional drafting
9

Project Deliverables in FANPOD P&ID Engineering Packages

FANPOD supplies complete, audit-ready engineering documentation complying with international plant standards:

  • Smart Multi-Sheet P&ID Sets: Native DWG and vector PDF formats with standardized layering and sanitary symbol libraries.
  • Master Instrument Index: Comprehensive schedules detailing calibration ranges, signal types, industrial network protocols, and location tags.
  • Line & Valve Schedules: Complete specifications detailing line sizes, body/seat materials, pressure ratings, actuation types, and tag IDs.
  • CIP & Process Sequence Matrices (Cause & Effect): Detailed operational logic matrices guiding PLC/SCADA automation programming.
  • Custom Plant 3D Database Libraries: Customized sanitary symbol catalogs (Alfa Laval / GEA / Tetra Pak) for client Plant 3D environments.
