Sanitary Stainless Steel Strainers | GuardMax® Series

GuardMax® sanitary strainers are critical components in hygienic process lines, designed to protect sensitive equipment from coarse particles, fibers, metal debris, and process contaminants. Their fully drainable, hygienic design makes them ideal for CIP/SIP-compatible systems in food, dairy, pharmaceutical, and biotech applications.

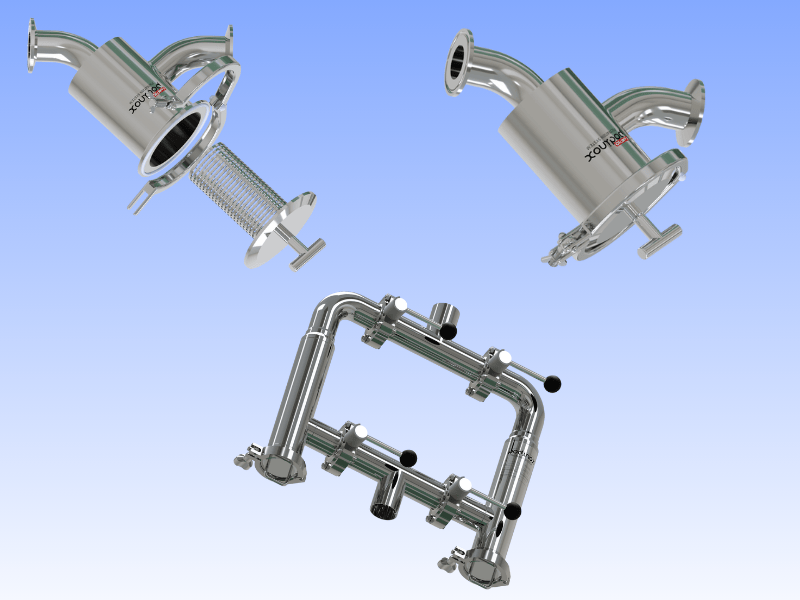

Sanitary Filter Strainer

Reliable Protection for Critical Equipment

Even small solid particles can cause severe damage to pumps, homogenizers, heat exchangers, and filling systems. GuardMax® strainers remove coarse contaminants before they reach critical downstream equipment.

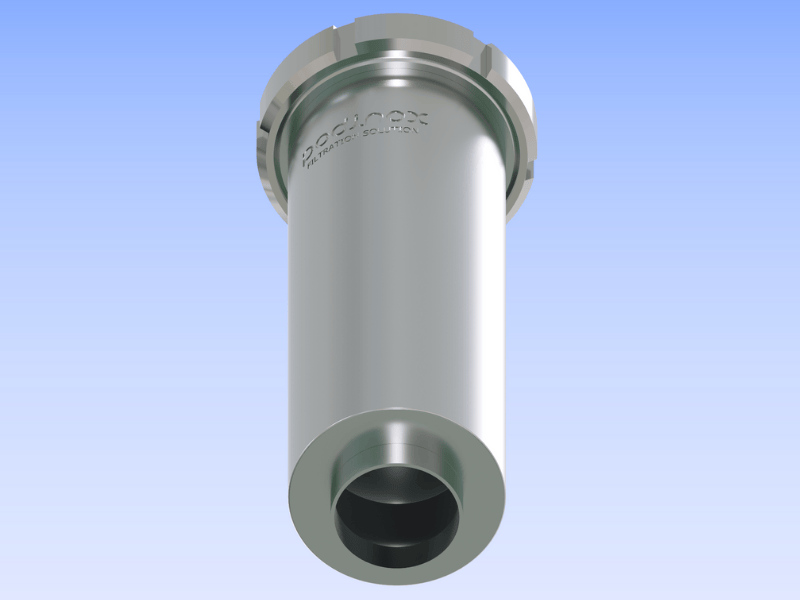

-STRAIGHT Sanitary Filter Strainer

PST-S Inline Model – Ultra-Low Pressure Drop

The PST-S straight-through design (0° inlet/outlet) offers the lowest pressure drop in the GuardMax® family, making it ideal for continuous processing lines, CIP circuits, and utility applications.

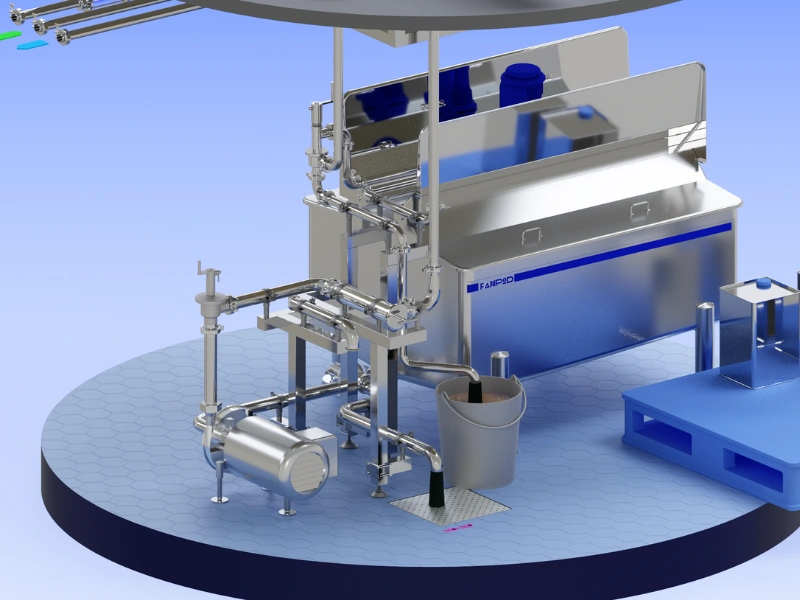

صافی استرینر استیل

Technical Specifications – PST Series Sanitary Strainers

Podinox Model Design Type Connection Size Filtration Area (cm²) Internal Element Type Main Application
PST-Y-0025 Y-Type 1" (DN25) 60 Wire Mesh / Perforated Pump protection, water lines
PST-Y-0038 Y-Type 1.5" (DN38) 120 Wire Mesh / Perforated General process lines
PST-Y-0051 Y-Type 2" (DN51) 180 Wire Mesh / Perforated Pasteurizer inlet, heat exchanger
PST-Y-0063 Y-Type 2.5" (DN63) 260 Wire Mesh / Perforated Medium flow-rate lines
PST-Y-0076 Y-Type 3" (DN76) 340 Wire Mesh / Perforated Main equipment protection
PST-A-0025 Angle (L-Type) 1" (DN25) 200 Perforated / Wedge Wire Light viscous fluids
PST-A-0038 Angle (L-Type) 1.5" (DN38) 350 Perforated / Wedge Wire Cream, syrup, viscous solutions
PST-A-0051 Angle (L-Type) 2" (DN51) 480 Perforated / Wedge Wire Milk tanker unloading, fruit pulp
PST-A-0063 Angle (L-Type) 2.5" (DN63) 620 Perforated / Wedge Wire Fluids with coarse particles
PST-A-0076 Angle (L-Type) 3" (DN80) 750 Perforated / Wedge Wire Main factory pipelines
PST-A-0101 Angle (L-Type) 4" (DN101) 980 Perforated / Wedge Wire High flow rate, central lines
PST-S-0025 Straight / Inline 1" (DN25) 150 Wire Mesh / Perforated Straight lines, low pressure drop
PST-S-0038 Straight / Inline 1.5" (DN38) 260 Wire Mesh / Perforated CIP and utility systems
PST-S-0051 Straight / Inline 2" (DN51) 420 Wire Mesh / Perforated Process lines with minimal pressure loss
PST-S-0063 Straight / Inline 2.5" (DN63) 580 Wire Mesh / Perforated High flow-rate lines with linear design
PST-S-0076 Straight / Inline 3" (DN76) 720 Wire Mesh / Perforated Continuous industrial processes

Most commonly used models

Model Type Connection Size Filtration Area (cm²) Element Type Application
PST-Y-0025 Y-Type 1" (DN25) 60 Mesh / Perforated Pump protection
PST-A-0051 Angle 2" (DN51) 480 Perforated / Wedge Tanker unloading, pulp
PST-S-0051 Straight 2" (DN51) 420 Wire Mesh Straight process lines

9.4 Filtration Elements

Element Type Material Size Application
Perforated Basket 316L ¼″, ⅛″, 3/32″ Removal of coarse particles
Mesh Screen 316L 20, 40, 100 Finer protection

Model Comparison

PST-S offers the lowest pressure drop, PST-A provides the highest dirt-holding capacity, and PST-Y delivers an economical solution for general protection.

Quick Selection Guide

  • Pressure drop is critical → PST-S Inline
  • High viscosity or fibrous products → PST-A Angle Type
  • General pump and equipment protection → PST-Y Type
